Magnatone Super 30 Retube Kits

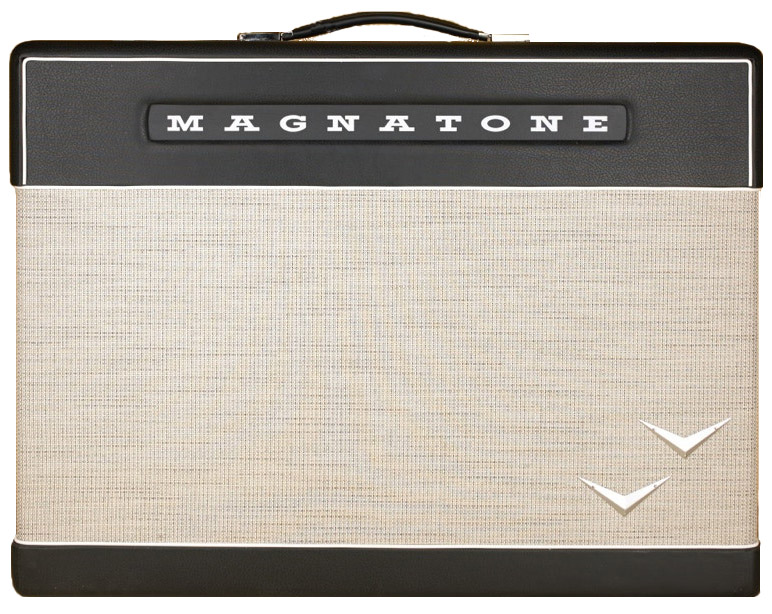

The Magnatone Super 30 amps.

All of our Magnatone Super 30 full Retube Kits are designed specifically for these amps. Every kit is configured to provide a specific sound/experience. Regardless of your style and application we have you covered!

The default power tubes for all of our Magnatone Super 30 Retube kits are the JJ EL84’s. However you can use the Power Tube drop down to select the JJ EL844. The JJ EL84 will on average maintain the OEM headroom/breakpoint for the output stage.  The JJ EL844 will drop the output power around 25% lowering the power tube breakup point.

These are cathode bias amps with no adjustment. The amount of clean headroom you’ll get from the power section is somewhat dictated by the grade of power tube used. A cooler grade of EL84 will give you more clean headroom, whereas a warmer grade will give you earlier breakup. If you order online, leave us a note in the comments section letting us know your headroom preference (max headroom, middle of the road or early breakup).

The Standard Retube Kit is as close to OEM as possible. Maintaining the amps stock level of headroom and gain while providing a warm but even handed overall sound. The kit includes one Matched quad of JJ EL84’s by default, a JJ GZ34S Rectifier tube, two JJ ECC82’s for V2 – V3, two current Balanced ECC83S’s for (V6 – V7 closest to the power tubes), and three Standard JJ ECC83S’s for V1 – V4 – V5.

The Gold Pin Retube Kit uses the JJ ECC83S Gold Pin variants to provide a smoother, creamier, and more singing overall sound. This option is less aggressive and has less “teeth” when driven hard. If you like a classic raunchy gritty overdriven tone, we recommend looking elsewhere… If sweet, open, and more refined is what you’re after this kit will do it. The kit includes one Matched quad of JJ EL84’s by default, a JJ GZ34S Rectifier tube, two Gold Pin JJ ECC82’s for V2 – V3, two current Balanced Gold Pin ECC83S’s for (V6 – V7 closest to the power tubes), and three Standard Gold Pin JJ ECC83S’s for V1 – V4 – V5.

The SRV Option Retube Kit It’s no secret that Stevie played his amps cranked and preferred a little cleaner sound from the front end, allowing you to hear more power tube breakup. This kit uses a JJ 5751 for V1 which is in-between an ECC81 and an ECC83S in gain. The kit includes one Matched quad of JJ EL84’s by default, a JJ GZ34S Rectifier tube, two JJ ECC82’s for V2 – V3, two current Balanced ECC83S’s for (V6 – V7 closest to the power tubes), two Standard ECC83S’s for V4 – V5 and one Standard JJ 5751 for V1.

The Gold Pin SRV Option Retube Kit For players looking for a smoother creamier tone. This kit uses a Gold pin JJ 5751 for V1 which is in-between an ECC81 and an ECC83S in gain. The kit includes one Matched quad of JJ EL84’s by default, a JJ GZ34S Rectifier tube, two Gold Pin JJ ECC82’s for V2 – V3, two current Balanced Gold Pin ECC83S’s for (V6 – V7 closest to the power tubes), two Standard Gold Pin ECC83S’s for V4 – V5 and one Standard Gold Pin JJ 5751 for V1.

The ECC803S V1 Option Retube Kit uses the Long Plate JJ ECC803S in the V1 position. The JJ Long Plate ECC803S has a little lower gain with big thick mids and a little more sparkle in the highs. The kit includes one Matched quad of JJ EL84’s by default, a JJ GZ34S Rectifier tube, two JJ ECC82’s for V2 – V3, two current Balanced ECC83S’s for (V6 – V7 closest to the power tubes), two Standard ECC83S’s for V4 – V5 and one Standard Long Plate JJ ECC803S for V1.

The Gold Pin ECC803S V1 Option Retube Kit uses the Long Plate JJ ECC803S in the V1 position. The JJ Long Plate ECC803S has a little lower gain with big thick mids and a little more sparkle in the highs. The kit includes one Matched quad of JJ EL84’s by default, a JJ GZ34S Rectifier tube, two Gold Pin JJ ECC82’s for V2 – V3, two current Balanced Gold Pin ECC83S’s for (V6 – V7 closest to the power tubes), two Standard Gold Pin ECC83S’s for V4 – V5 and one Standard Long Plate Gold Pin JJ ECC803S for V1.
